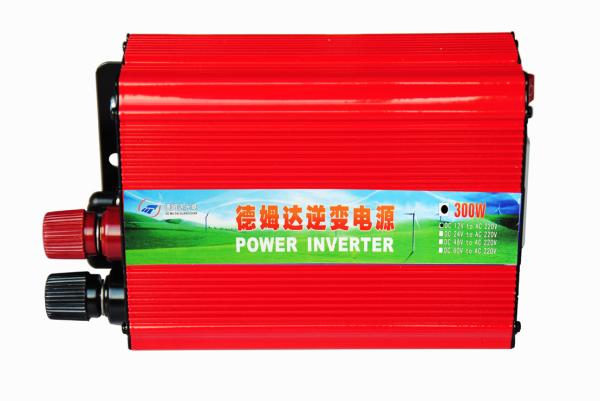

    Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.

    Ask Lasest Price
    Brand Name : APS
    Model Number : Modified Sine Wave Inverter-300W,500W,1000W
    Certification : CE
    Payment Terms : T/T, L/C, D/A, D/P, T/T
    Supply Ability : 100000PCS
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

    Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.

    Features :

    1.High-end chip,improve the working reliability.

    2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse connection protection.

    3.Sound and light alarm,under-voltage alarm,with frequency-conversion cooling fan.

    4.Soft-start function,increase loading capacity.

    5.Aluminum alloy shell,Heat eliminable.

    6.With battery clip,AC input wire,cigarette lighter socket.

    Power Rating300W500W1000W
    Continue Output Rating300W500W1000W
    Peak Power Rating Output600W1000W2000W
    Input SectionDC Input Voltage12V24V48V12V24V
    DC Operating Voltage11-15V21-29V40-55V11-15V21-29V
    DC Low-voltage Protection9-10.5V18.5-20.5V39V9-10.5V18.5-20.5V
    DC Low-voltage Alarm9.5-11V19.5-21V40V±19.5-11V19.5-21V
    DC Over-voltage Protection≥15V≥29V≥55V≥15V≥29V
    Fuse40A*120A*230A*140A*120A*3
    Quiescent Current≤0.5A≤0.5A≤0. 5A≤0. 5A≤1A
    Output SectionOutput WaveformModified Sine Wave
    Output Voltage220V±10%
    Output Frequency50HZ±1%
    Transfer Efficiency≥90%
    Overload Protection300W--360W500W--600W1000W--1200W1000W--1200W
    Short-circuit ProtectionYes
    Operating Temperature-10℃--+50℃
    Temperature Protection+60℃--+70℃
    Green LED IndicatorGreen Light(Working),Flash(Overload Protection)
    Red LED IndicatorRed Light(Error Protection)
