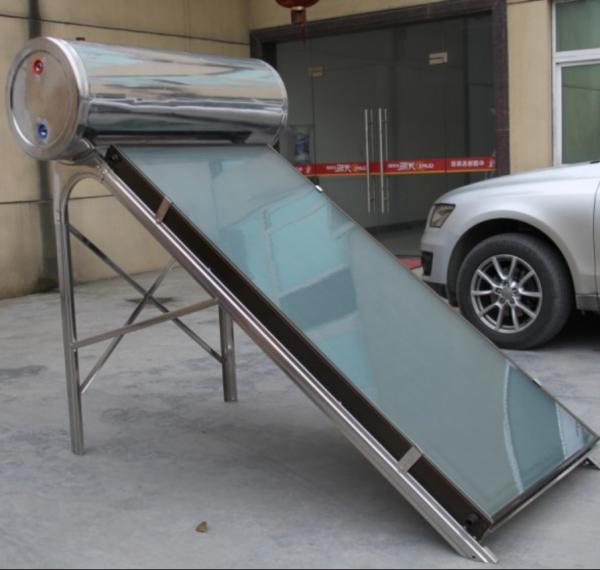

Compact Flat Collector Solar Water Heater

Tech Data:

1. Inner water tank: Stainless Steel, SUS304-2B, SS316L; Thickness,0.5MM.

2. Outer water tank: Color Steel, Stainless Steel; Thickness, 0.40MM.

3. Insulation layer: Polyurethane foam; Thickness, 30-60MM.

4. Frame: Galvanized Steel, Stainless Steel; Angle, As your requirement.

5. Solar Collector: Length 2000MM; Widen,1000MM; Thickness,80MM.

6. Heating Element, Mg Rod, Reflector and Controller can be provided.

7. Working Pressure :0.6Mpa ,Testing Pressure :1.0Mpa.

Characteristic:

1. High efficiency: Black chrome or magnetic blue sputtering coating with absorptivity of 92% - 96%, Emission of 5% -10%.
2. Easy installation: Many styles of brackets suitable for different construction, easy installation, beautiful appearance.

3. The system is same as tap water which would make the bathing very comfortable.

4. With the T/P valve, air vent valve makes the system work very stable and safety.
