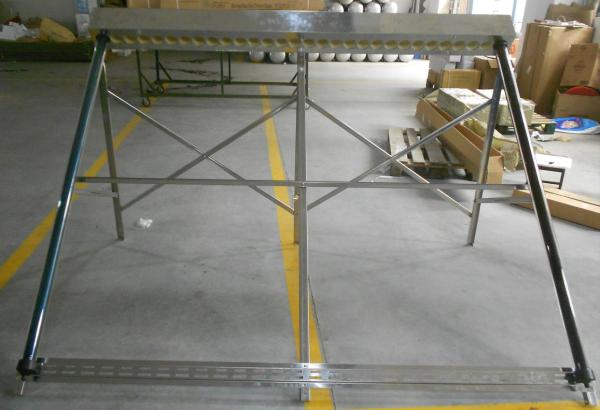

Heat Pipe Solar Collector

Tech Data:

1. Manifold Casing Materials:Galvanized Steel, Stainless Steel;Sliver or Black;Insulation: PUF.

2. Header Pipe Materials:Copper TU2, 1.0MM Thickness and 35MM Diameter.

3. Vacuum Tube Heat Pipe:Copper, TU2; 8MM Dia; 1700MM len.;Condenser, Dia,14MM; Single or Double Fins.

4. Frame material: Galvanized Steel, Stainless Steel.

5. Fame Angle can modified according to the customers’ requirement.

6. Manifold Shape and Size can be modified according to the customers’ requirement.

Characteristic:

The heat pipe solar collector is connected with storage tank, electric control device, hot water mix unit and fittings for circulation and installation. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum fins. The liquid in the heat pipe changes into vapour which rises to the condenser. The heat then passes through the heat ex-changer and The vapor becomes liquid, returning to the base of the heat pipe. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.

Model:

Shanghai APS Eco-tech Co., Ltd is established in 1997,covering an area of 150000 m2 workshop and 2500 workers and 160 technical stuff in four standard industrial parks.

We always focus on the research and production of LED Light, Solar Road Light, Solar DC Light, Solar Flood Light, Solar Garden Light, Solar Submersible DC Pump, Solar Panels, Solar Controller,Solar Cooker,Solar Stoves,Solar Swimming Pool, Solar Water Heater, Water Pipe and Insulation Pipe,Shower Sets and Water Loop Accessorizes.

We always keen on providing the high quality products and excellent services and advanced management to all our clients, and this make our sales network covers 29 provinces of China and more than 80 countries around the world.

We always keen on providing the high quality products and excellent services and advanced management to all our clients, and this make our sales network covers 29 provinces of China and more than 80 countries around the world.

We always maintain strong integrated logistics chain and also are immersed in market of construction with the contribution of design to our products to harmonize any type of construction.

Now, We will continues our promise and political with our environmental care, and also take into account with the economic and protecting our green homes.

Welcome to all users to fighting a better future hand in hand..
